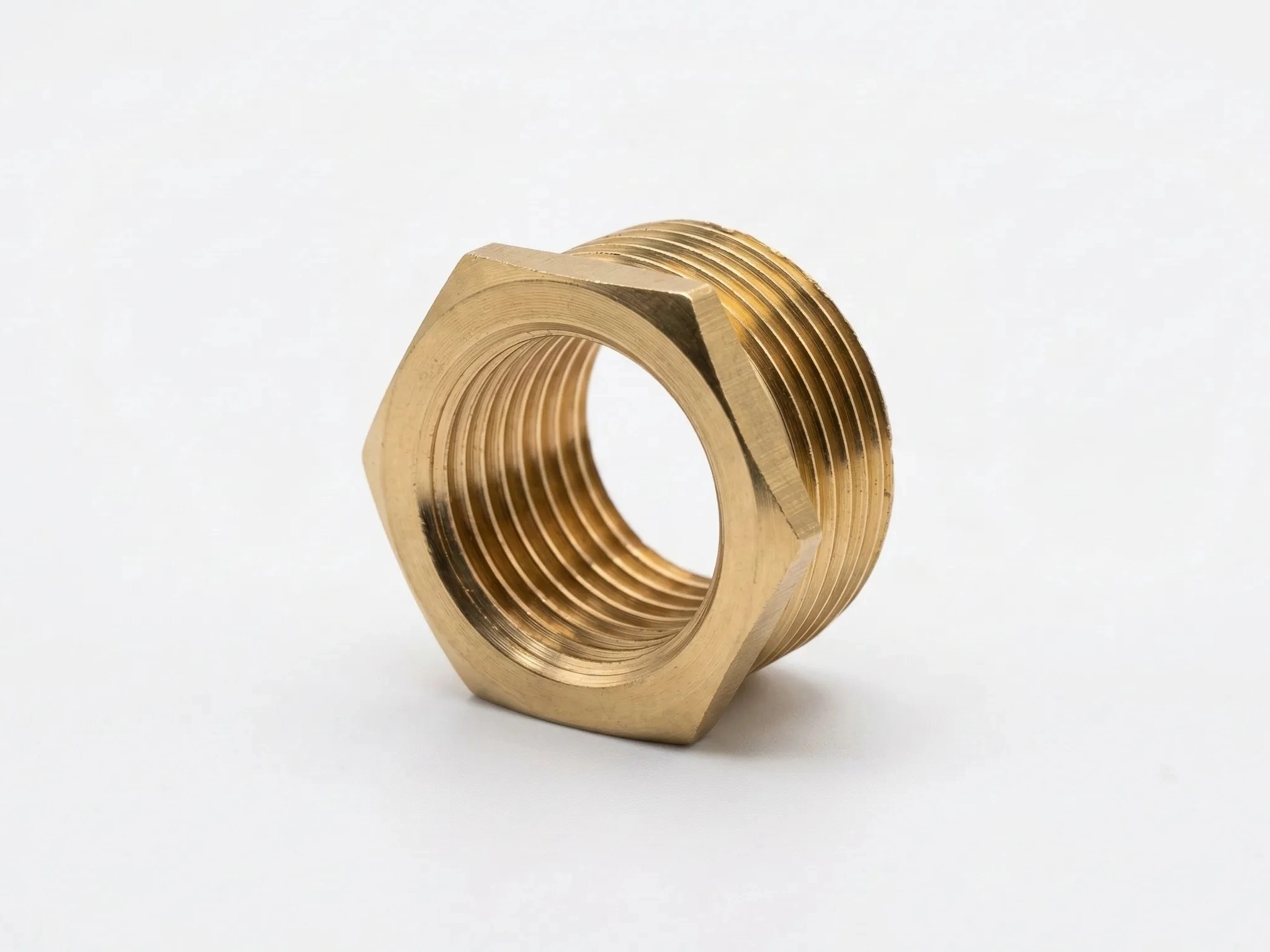

Brass Connector
A versatile precision-machined brass connector designed for creating secure and reliable joints across a wide range of plumbing, hydraulic, and pneumatic applications. Manufactured from CDA C36000 free-cutting brass, this connector features precision-cut internal and external threads conforming to BSP, NPT, or ISO metric standards. The connector body is engineered with optimal wall thickness to handle working pressures up to 20 bar while maintaining a compact profile for use in confined installation spaces. Available in straight, reducing, and adapter configurations to accommodate different pipe sizes and thread types. Surface finishes include natural brass, nickel plated, and chrome plated for corrosion protection and visual appeal. Commonly used in residential and commercial plumbing systems, compressed air lines, hydraulic circuits, water treatment installations, and industrial fluid distribution networks.
Key Highlights
Features & Benefits
Self-Sealing Threads
NPT tapered thread design creates a progressively tighter metal-to-metal seal as the fitting is tightened.
Multiple Finishes
Available in natural brass, nickel plated, and chrome plated surface finishes.
Comprehensive Size Range
Sizes from 1/8 inch to 2 inches in straight, elbow, tee, cross, reducer, and adapter configurations.
ASME Certified
All NPT threads conform to ASME B1.20.1. BSP threads comply with ISO 228 and BS EN 10226 standards.
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | CI-BF-002 |
| Material | CDA C36000 Free-Cutting Brass |
| Thread Standards | ASME B1.20.1 (NPT), ISO 228 (BSP) |
| Size Range | 1/8" to 2" |
| Pressure Rating | Up to 25 bar (360 PSI) |
| Temperature Range | -20°C to +120°C |
| Surface Finish | Natural, Nickel, Chrome |
| Configurations | Straight, Elbow, Tee, Cross, Reducer |
| Compliance | ASME B1.20.1, ISO 228, BS EN 10226 |
Material & Quality Assurance
Brass pipe fittings are manufactured from CDA C36000 free-cutting brass, the industry standard for precision-machined plumbing and industrial fittings.
Usage & Installation Guide
Installation follows standard plumbing practices. NPT tapered threads should be wrapped with PTFE tape or coated with pipe thread compound before assembly.
Applications & Industries
The Brass Connector is widely used across diverse industrial sectors:
Why Choose Chetna Industries for Brass Connector?
Chetna Industries is a trusted manufacturer and global supplier of precision brass components with expertise in CNC machining and brass insert manufacturing.
- State-of-the-Art Manufacturing: Swiss-type CNC lathes and multi-axis machining centers capable of producing millions of precision brass components monthly.
- Custom Engineering Support: In-house DFM analysis, material selection guidance, and custom product development.
- Global Quality Standards: ISO 9001:2015 certified with full traceability and compliance with DIN, ISO, ASTM, and ASME specifications.
- Competitive Pricing: Direct manufacturer pricing with flexible MOQ. Transparent quotes within 24 hours.
- Reliable Global Supply: On-time delivery worldwide. Standard products ship within 7-10 business days.
