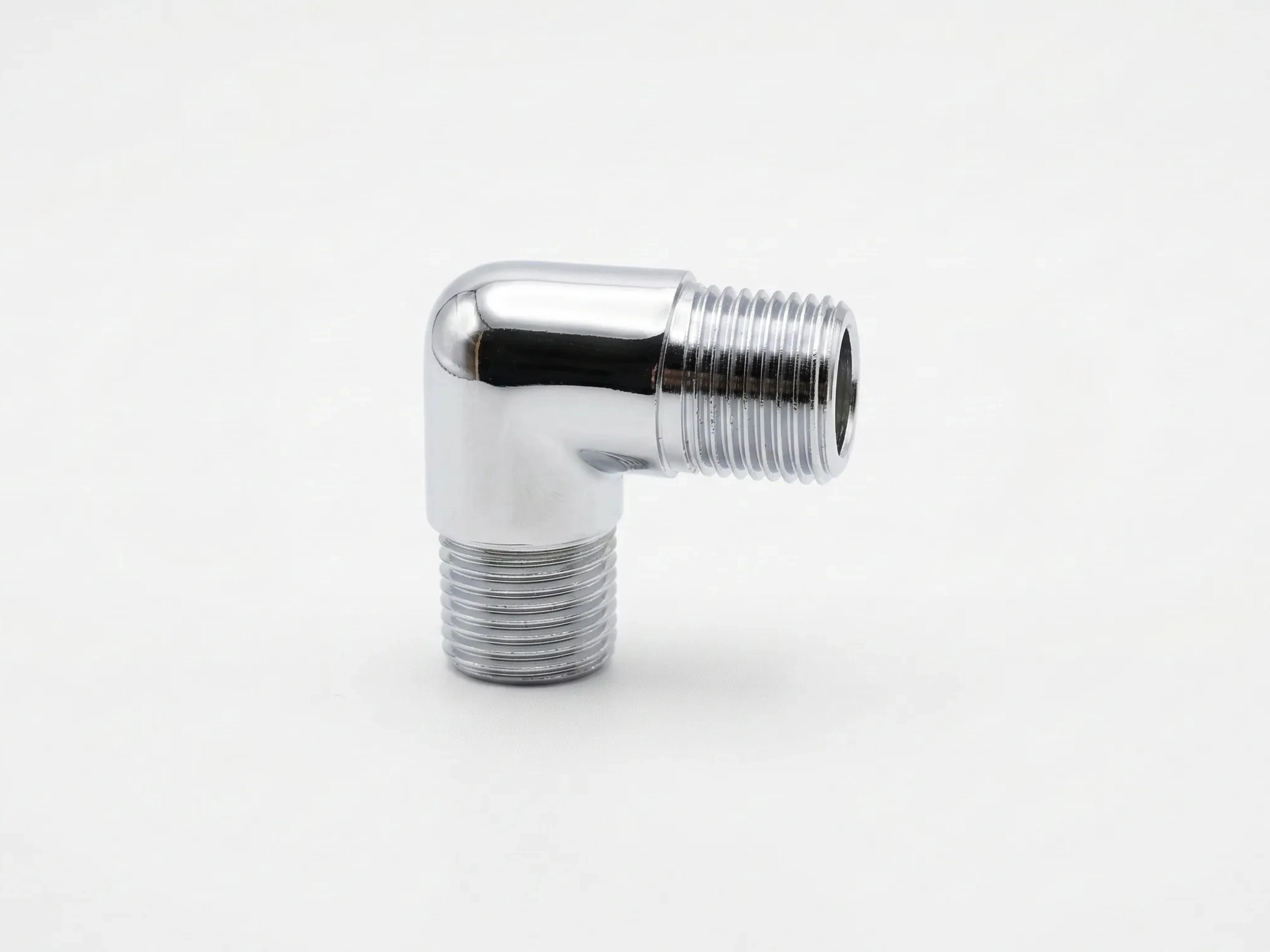

Brass Elbow
A precision-machined 90-degree brass elbow fitting engineered for redirecting fluid flow in residential, commercial, and industrial pipework systems. Manufactured from CDA C36000 free-cutting brass, this elbow offers outstanding durability, corrosion resistance, and long-term leak-free performance. The internal bore is precision-reamed for smooth, unrestricted flow with minimal pressure drop across the bend. Threaded ends conform to BSP or NPT standards with tight tolerances ensuring reliable sealing with standard pipe tape or thread sealant. Available in sizes from 1/4 inch to 2 inches with working pressure ratings up to 25 bar. The robust brass construction withstands thermal cycling, vibration, and mechanical stress without developing fatigue failures. Ideal for bathroom and kitchen plumbing, water heater connections, compressed air systems, and general industrial piping where a directional change is required.
.webp)
Key Highlights
Features & Benefits
Lead-Free Safe
Available in lead-free brass variants compliant with NSF/ANSI 61 with natural antimicrobial properties.
Leak-Free Design
Precision-machined threads with ±0.05mm tolerances ensure consistent, reliable sealing.
Aesthetic Finishes
Available in polished brass, satin nickel, chrome plated, and brushed bronze finishes.
Thermal Cycling Resistant
Engineered to withstand daily thermal cycling from -20°C to +120°C without stress fractures.
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | CI-BF-003 |
| Material | CDA C36000 / Lead-Free CDA C69300 |
| Thread Standards | BSP, NPT |
| Size Range | 1/4" to 2" |
| Pressure Rating | Up to 25 bar |
| Temperature Range | -20°C to +120°C |
| Surface Finish | Brass, Nickel, Chrome, Bronze |
| Compliance | NSF/ANSI 61, EN 1254, AS 3688 |
| Antimicrobial | EPA-registered copper alloy surface |
Material & Quality Assurance
Sanitary fittings are precision-manufactured from CDA C36000 free-cutting brass, with lead-free CDA C69300 variants available for potable water compliance.
Usage & Installation Guide
Sanitary fittings should be installed according to local plumbing codes and manufacturer instructions. Thread preparation with PTFE tape ensures leak-free connections.
Applications & Industries
The Brass Elbow is widely used across diverse industrial sectors:
Why Choose Chetna Industries for Brass Elbow?
Chetna Industries is a trusted manufacturer and global supplier of precision brass components with expertise in CNC machining and brass insert manufacturing.
- State-of-the-Art Manufacturing: Swiss-type CNC lathes and multi-axis machining centers capable of producing millions of precision brass components monthly.
- Custom Engineering Support: In-house DFM analysis, material selection guidance, and custom product development.
- Global Quality Standards: ISO 9001:2015 certified with full traceability and compliance with DIN, ISO, ASTM, and ASME specifications.
- Competitive Pricing: Direct manufacturer pricing with flexible MOQ. Transparent quotes within 24 hours.
- Reliable Global Supply: On-time delivery worldwide. Standard products ship within 7-10 business days.
