Brass Plastic Moulding Insert
A general-purpose brass insert engineered for embedding in a wide range of thermoplastic materials including ABS, polycarbonate, nylon, POM, HDPE, LDPE, PP, and PEEK. Features opposing diagonal knurling for exceptional resistance to both torque and tensile loads. Available in metric (M2–M12) and UNC/UNF thread sizes. Can be installed via heat-staking (using heated press tools that melt surrounding plastic), ultrasonic insertion, or direct mould-in during injection moulding. Common in automotive interior parts, sensor housings, GPS enclosures, PCB standoffs, and aerospace overhead compartment components.
Key Highlights
Features & Benefits
Multi-Process Compatible
Compatible with injection mould-in, heat staking, ultrasonic insertion, and press-fit installation methods.
Multiple Knurl Options
Available in diamond, straight, cross, helical, and multi-ring knurl patterns optimized for specific host materials.
Tight Tolerances
Manufactured with dimensional tolerances of ±0.05mm or tighter. Thread pitch accuracy conforms to DIN 7965 / ISO 8140 standards.
Reusable Assembly
Brass inserts enable repeated assembly and disassembly of threaded fasteners in plastic housings without thread degradation.
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | CI-MI-003 |
| Material | CDA 360/361 Free-Cutting Brass |
| Thread Standards | DIN 7965, ISO 8140, UNC, UNF, Metric |
| Thread Sizes | M2 to M12, #4-40 to ½-13 |
| Outer Diameter | 3mm to 25mm |
| Dimensional Tolerance | ±0.05mm (±0.02mm on request) |
| Knurl Patterns | Diamond, Straight, Cross, Helical, Multi-ring |
| Installation Methods | Mould-in, Heat-set, Ultrasonic, Press-fit |
| Host Materials | ABS, PC, Nylon, POM, PP, PEEK, PVC |
Material & Quality Assurance
Moulding inserts are manufactured from CDA 360 and CDA 361 free-cutting brass, selected for their exceptional machinability. The alloy composition provides good corrosion resistance and adequate tensile strength for fastener applications.
Usage & Installation Guide
The installation method depends on the host material properties and production volume. Mould-in installation provides the strongest bond; heat staking is preferred for post-moulding installation; ultrasonic insertion creates rapid and clean installations.
Applications & Industries
The Brass Plastic Moulding Insert is widely used across diverse industrial sectors:
Why Choose Chetna Industries for Brass Plastic Moulding Insert?
Chetna Industries is a trusted manufacturer and global supplier of precision brass components with expertise in CNC machining and brass insert manufacturing.
- State-of-the-Art Manufacturing: Swiss-type CNC lathes and multi-axis machining centers capable of producing millions of precision brass components monthly.
- Custom Engineering Support: In-house DFM analysis, material selection guidance, and custom product development.
- Global Quality Standards: ISO 9001:2015 certified with full traceability and compliance with DIN, ISO, ASTM, and ASME specifications.
- Competitive Pricing: Direct manufacturer pricing with flexible MOQ. Transparent quotes within 24 hours.
- Reliable Global Supply: On-time delivery worldwide. Standard products ship within 7-10 business days.
Related Products

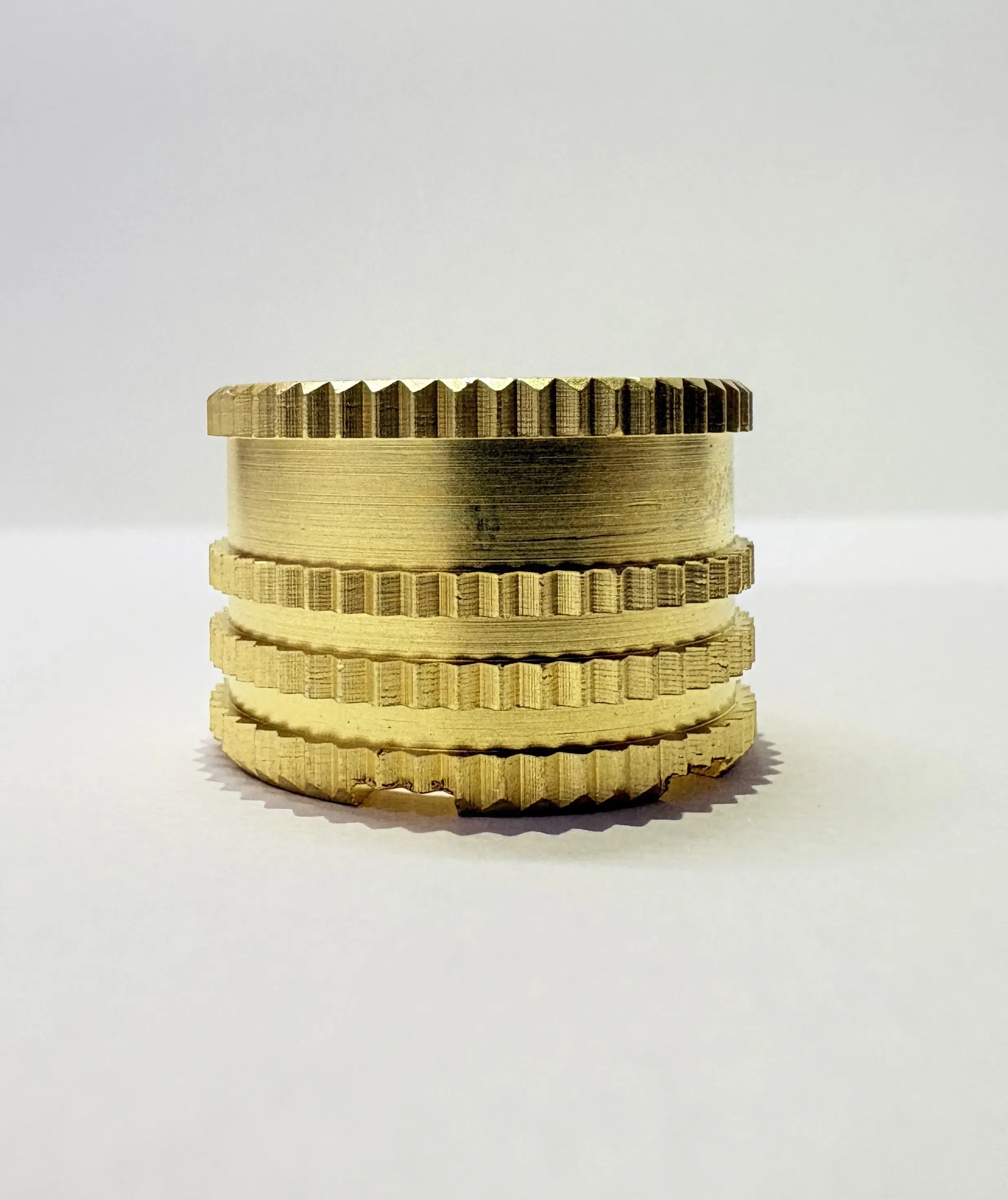

.webp)
