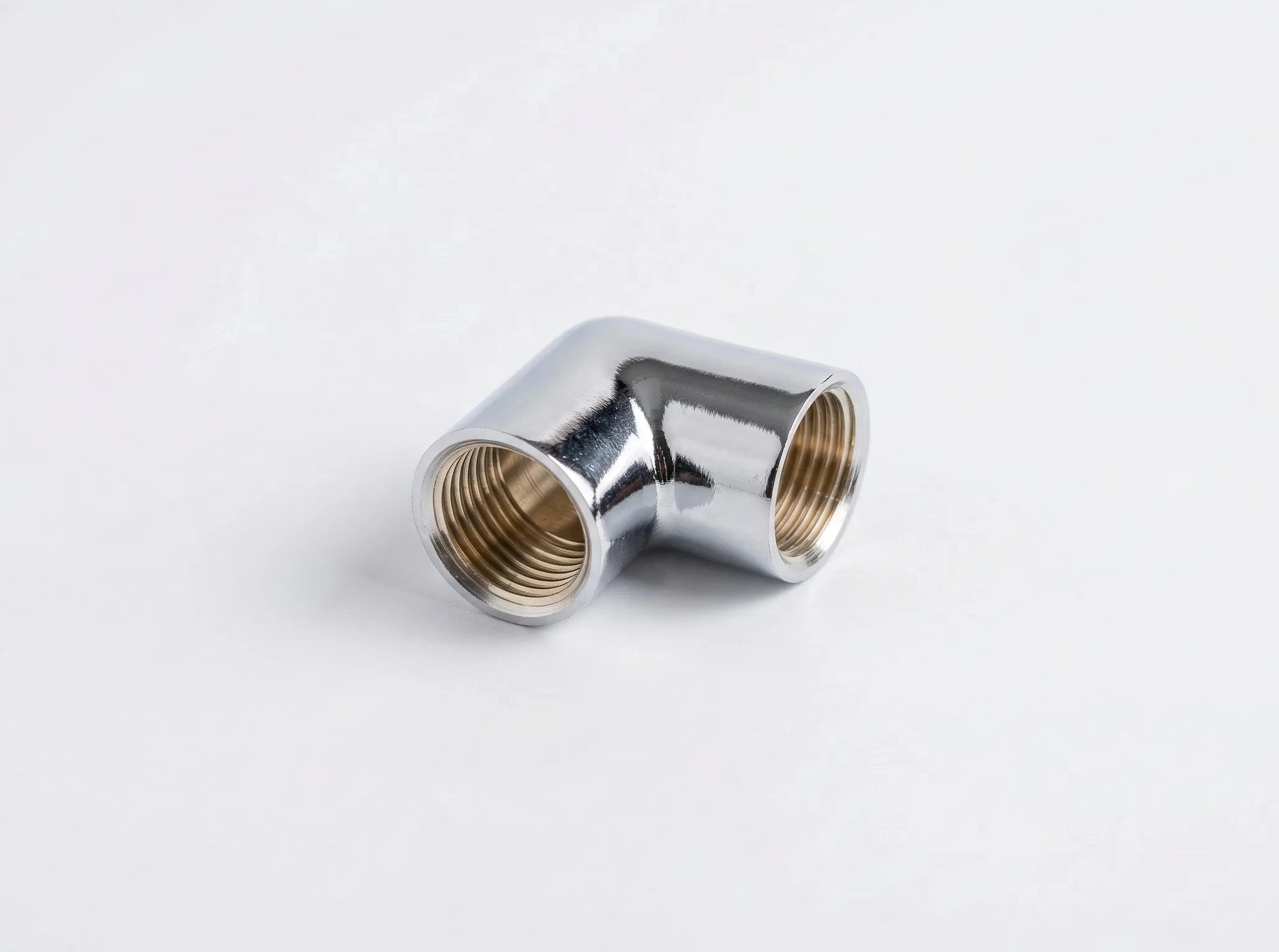

Brass Elbow 3
A heavy-duty brass elbow fitting specifically engineered for robust pipework applications demanding exceptional thread engagement and pull-out resistance. Manufactured from forged CDA C36000 brass with superior grain structure for maximum mechanical strength. The extended thread length on both ports provides additional engagement area, significantly improving the joint's resistance to rotational and axial forces encountered in pressurized piping systems. Internal bore features a precision ground finish for optimal flow characteristics. Working pressure capabilities extend up to 30 bar, making this elbow suitable for high-pressure applications. Available in sizes ranging from 3/8 inch to 2 inches with BSP or NPT threading. The forged brass construction ensures freedom from porosity and casting defects. Widely deployed in industrial water treatment, chemical processing, steam distribution, compressed air networks, and marine plumbing systems.
.webp)
Key Highlights
Features & Benefits
Lead-Free Safe
Available in lead-free brass variants compliant with NSF/ANSI 61 with natural antimicrobial properties.
Leak-Free Design
Precision-machined threads with ±0.05mm tolerances ensure consistent, reliable sealing.
Aesthetic Finishes
Available in polished brass, satin nickel, chrome plated, and brushed bronze finishes.
Thermal Cycling Resistant
Engineered to withstand daily thermal cycling from -20°C to +120°C without stress fractures.
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | CI-BF-005 |
| Material | CDA C36000 / Lead-Free CDA C69300 |
| Thread Standards | BSP, NPT |
| Size Range | 1/4" to 2" |
| Pressure Rating | Up to 25 bar |
| Temperature Range | -20°C to +120°C |
| Surface Finish | Brass, Nickel, Chrome, Bronze |
| Compliance | NSF/ANSI 61, EN 1254, AS 3688 |
| Antimicrobial | EPA-registered copper alloy surface |
Material & Quality Assurance
Sanitary fittings are precision-manufactured from CDA C36000 free-cutting brass, with lead-free CDA C69300 variants available for potable water compliance.
Usage & Installation Guide
Sanitary fittings should be installed according to local plumbing codes and manufacturer instructions. Thread preparation with PTFE tape ensures leak-free connections.
Applications & Industries
The Brass Elbow 3 is widely used across diverse industrial sectors:
Why Choose Chetna Industries for Brass Elbow 3?
Chetna Industries is a trusted manufacturer and global supplier of precision brass components with expertise in CNC machining and brass insert manufacturing.
- State-of-the-Art Manufacturing: Swiss-type CNC lathes and multi-axis machining centers capable of producing millions of precision brass components monthly.
- Custom Engineering Support: In-house DFM analysis, material selection guidance, and custom product development.
- Global Quality Standards: ISO 9001:2015 certified with full traceability and compliance with DIN, ISO, ASTM, and ASME specifications.
- Competitive Pricing: Direct manufacturer pricing with flexible MOQ. Transparent quotes within 24 hours.
- Reliable Global Supply: On-time delivery worldwide. Standard products ship within 7-10 business days.
