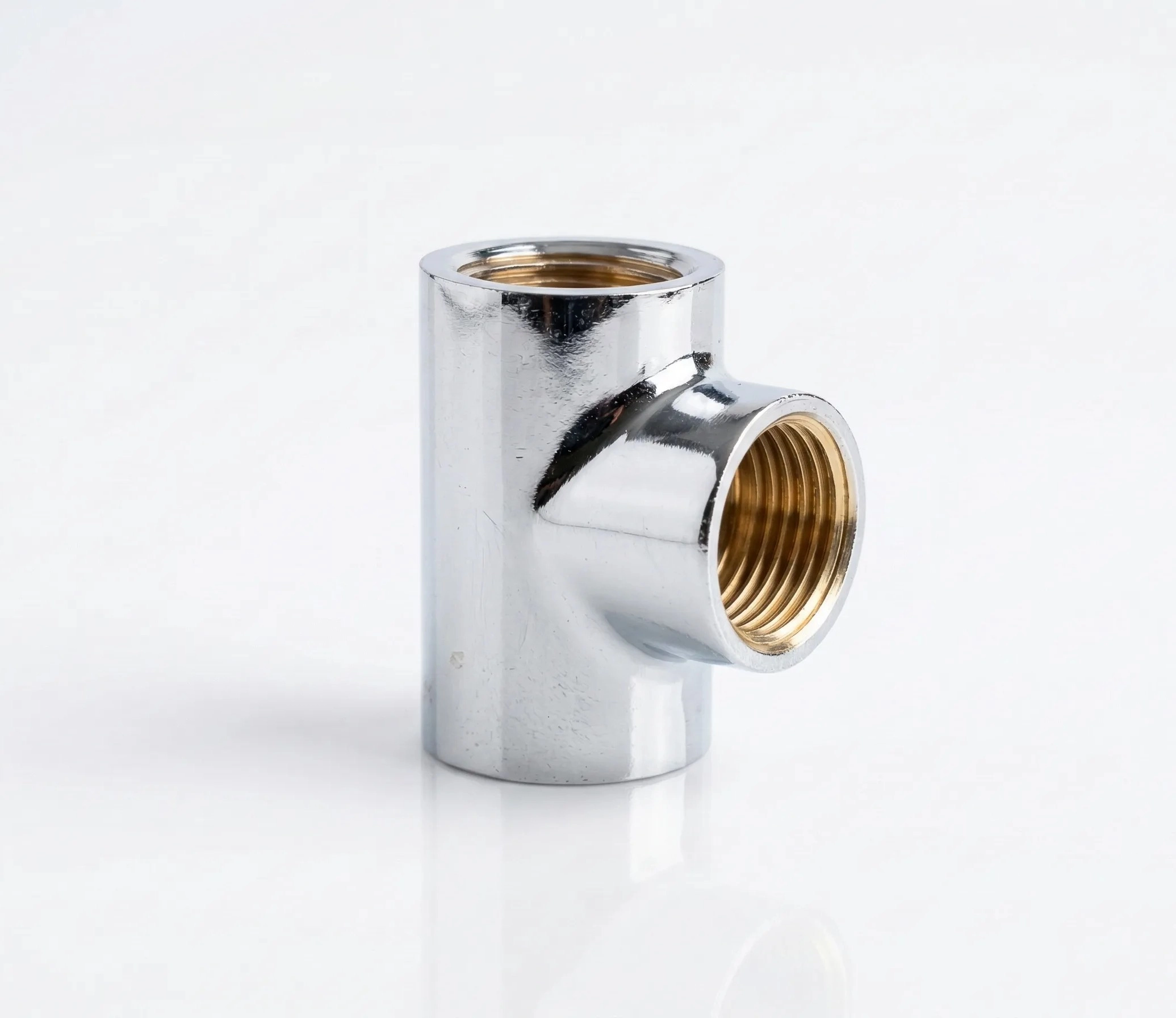

T Elbow
A precision-machined brass T-elbow fitting designed for creating effective branch lines within residential, commercial, and industrial piping systems. Manufactured from CDA C36000 free-cutting brass, this tee fitting allows a single pipeline to be divided into two directions at a 90-degree angle while maintaining the main flow path. All three threaded ports are precision-machined to BSP or NPT standards with tight dimensional tolerances for reliable, leak-free installation. The robust brass construction provides excellent resistance to dezincification, corrosion, and mineral scaling in both fresh and treated water systems. Available in equal and reducing configurations to accommodate different pipe sizing requirements. Working pressure rated up to 20 bar with temperature capabilities from -20°C to +120°C. Essential in water distribution manifolds, heating system branches, compressed air distribution, and irrigation system splits.
.webp)
Key Highlights
Features & Benefits
Lead-Free Safe
Available in lead-free brass variants compliant with NSF/ANSI 61 with natural antimicrobial properties.
Leak-Free Design
Precision-machined threads with ±0.05mm tolerances ensure consistent, reliable sealing.
Aesthetic Finishes
Available in polished brass, satin nickel, chrome plated, and brushed bronze finishes.
Thermal Cycling Resistant
Engineered to withstand daily thermal cycling from -20°C to +120°C without stress fractures.
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | CI-BF-006 |
| Material | CDA C36000 / Lead-Free CDA C69300 |
| Thread Standards | BSP, NPT |
| Size Range | 1/4" to 2" |
| Pressure Rating | Up to 25 bar |
| Temperature Range | -20°C to +120°C |
| Surface Finish | Brass, Nickel, Chrome, Bronze |
| Compliance | NSF/ANSI 61, EN 1254, AS 3688 |
| Antimicrobial | EPA-registered copper alloy surface |
Material & Quality Assurance
Sanitary fittings are precision-manufactured from CDA C36000 free-cutting brass, with lead-free CDA C69300 variants available for potable water compliance.
Usage & Installation Guide
Sanitary fittings should be installed according to local plumbing codes and manufacturer instructions. Thread preparation with PTFE tape ensures leak-free connections.
Applications & Industries
The T Elbow is widely used across diverse industrial sectors:
Why Choose Chetna Industries for T Elbow?
Chetna Industries is a trusted manufacturer and global supplier of precision brass components with expertise in CNC machining and brass insert manufacturing.
- State-of-the-Art Manufacturing: Swiss-type CNC lathes and multi-axis machining centers capable of producing millions of precision brass components monthly.
- Custom Engineering Support: In-house DFM analysis, material selection guidance, and custom product development.
- Global Quality Standards: ISO 9001:2015 certified with full traceability and compliance with DIN, ISO, ASTM, and ASME specifications.
- Competitive Pricing: Direct manufacturer pricing with flexible MOQ. Transparent quotes within 24 hours.
- Reliable Global Supply: On-time delivery worldwide. Standard products ship within 7-10 business days.
